Wuque WS Cullinan Switches

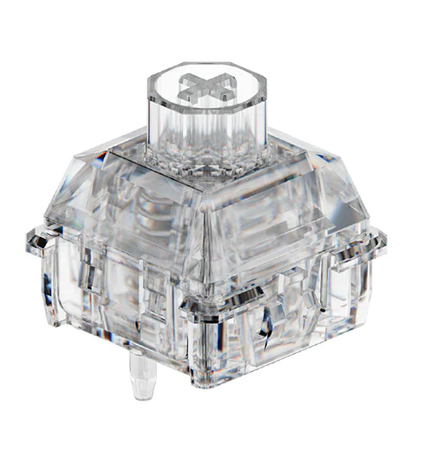

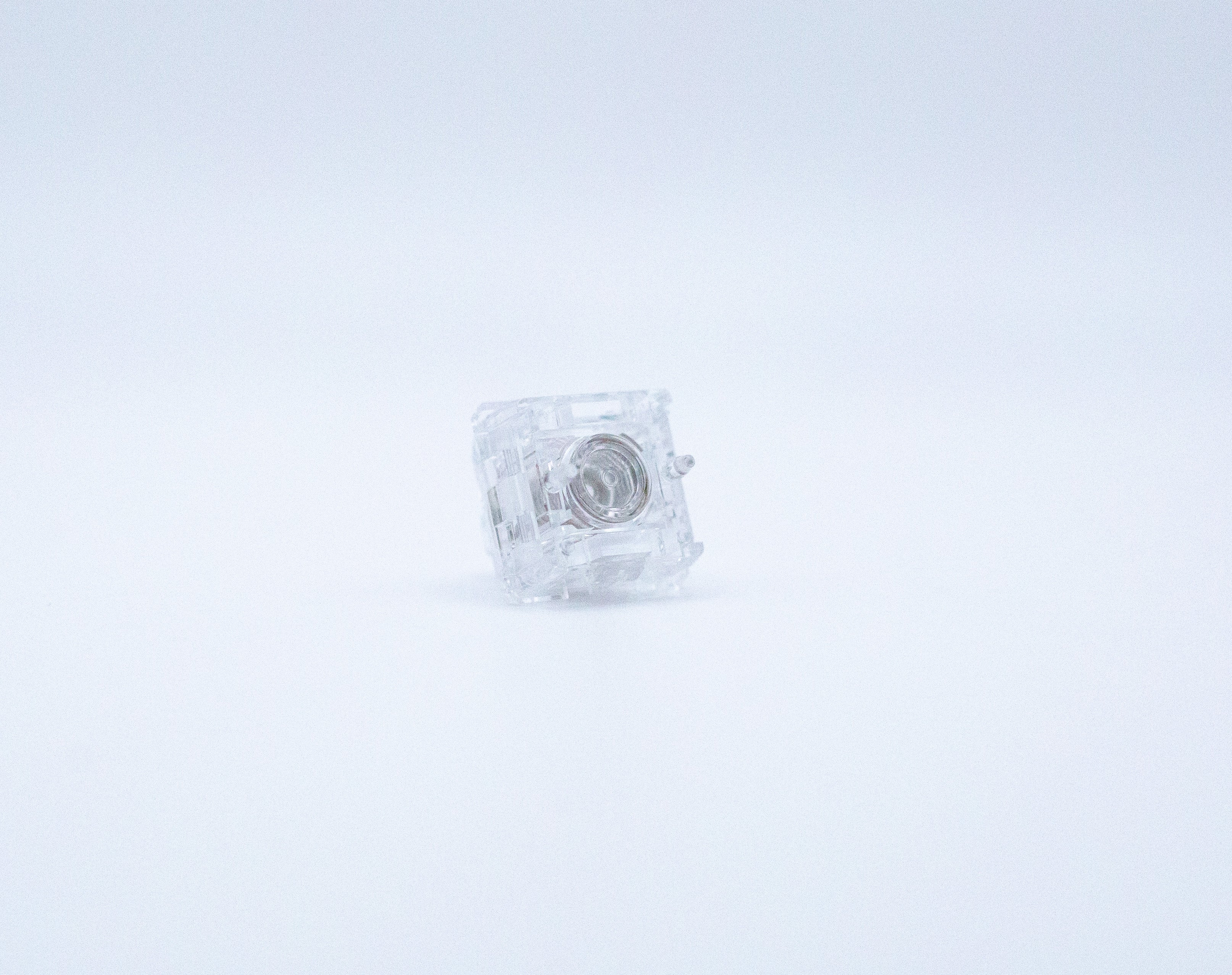

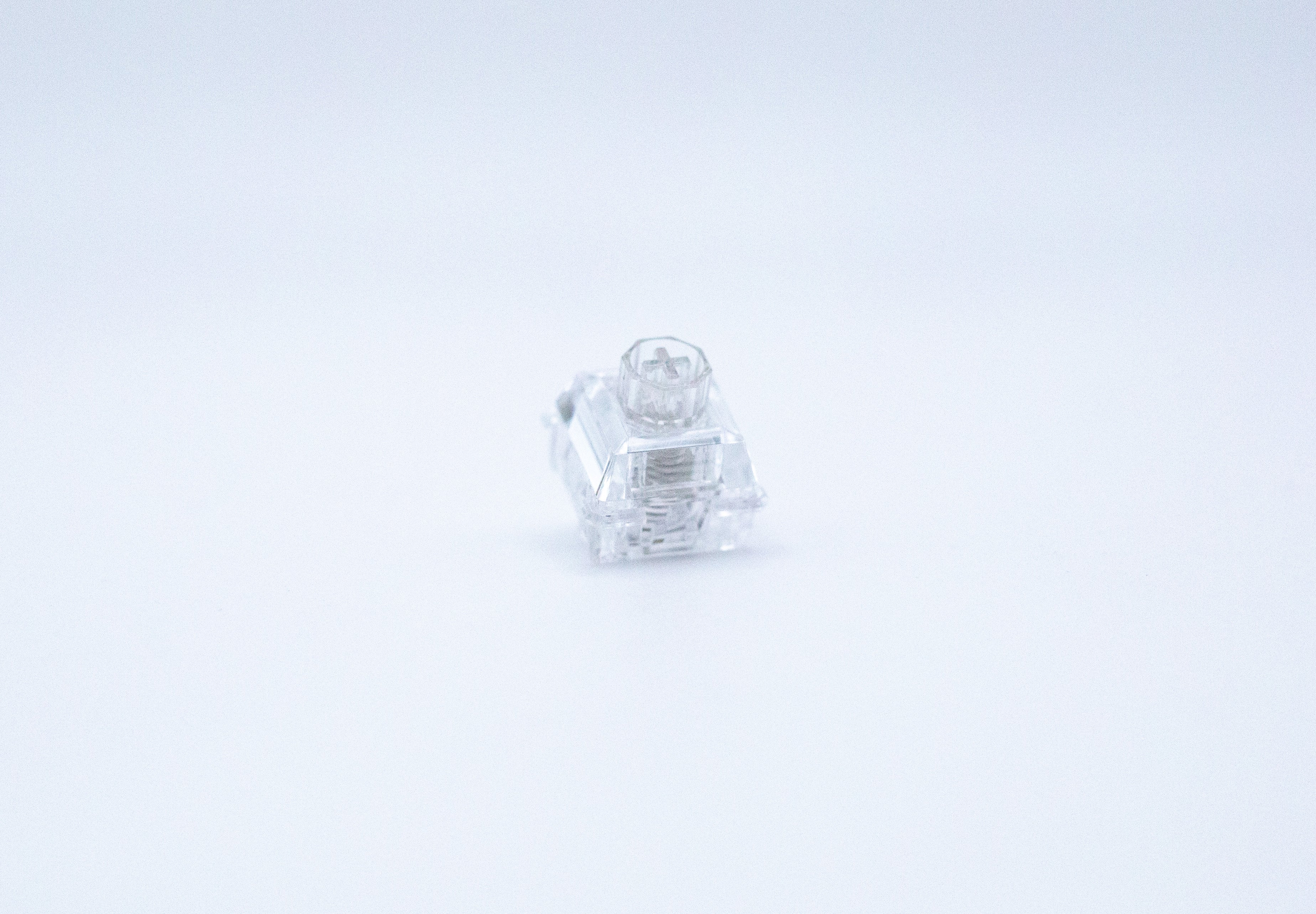

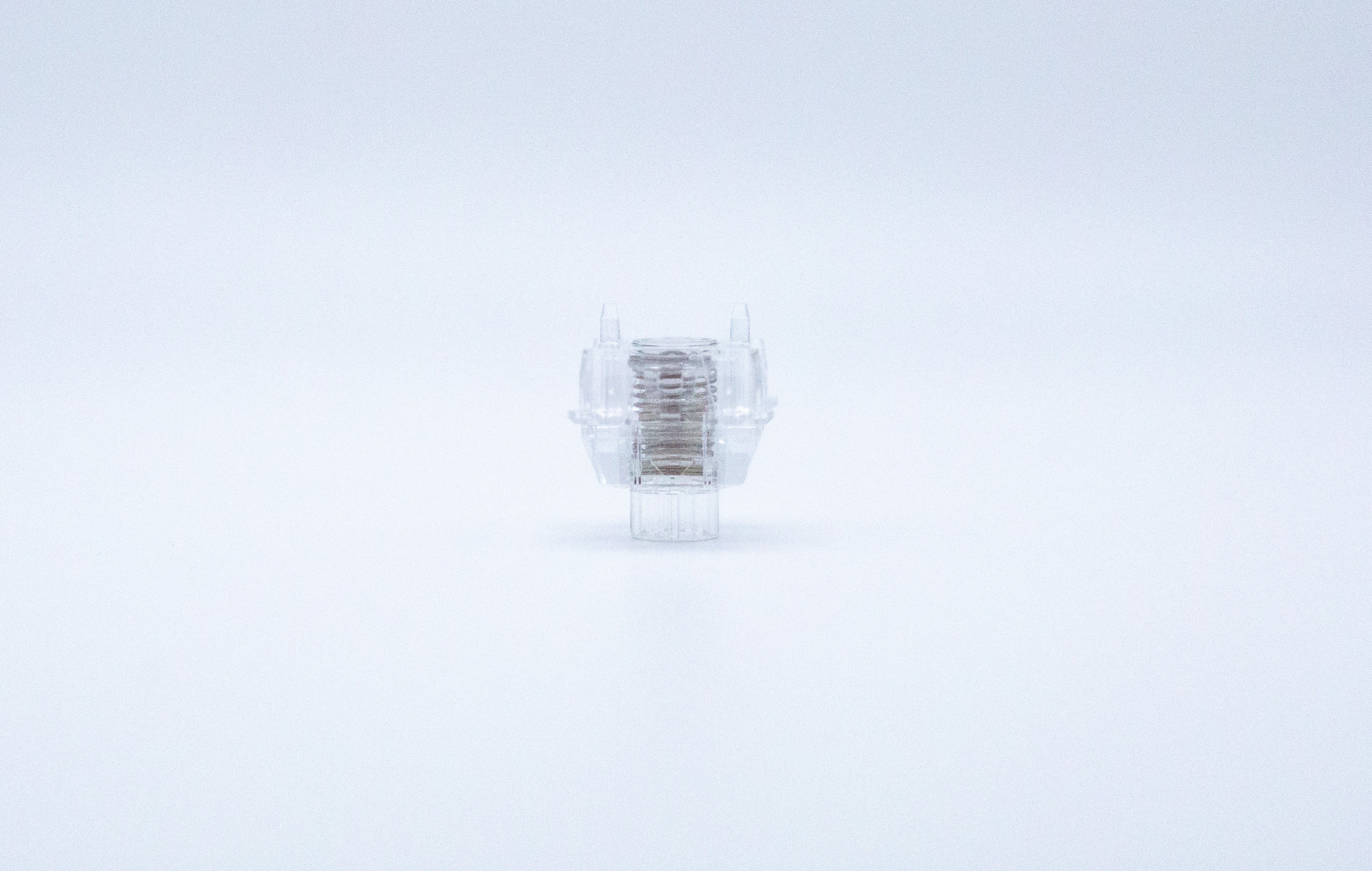

WS Cullinan Magnetic Switch

Crystal Clear. Diamond Stable.

Inspired by the Cullinan diamond, the WS Cullinan Magnetic Switch features an ultra-transparent polished PC housing, an innovative octagonal stem for exceptional stability, and a plastic-cored magnetic design that delivers crisp mechanical-like sound with brilliant RGB performance.

Features:

Linear Magnetic
Top Housing Material - PC
Bottom Housing Material - PC
Magnet - N52
Spring Wire Diameter - 0.30 ± 0.01mm
Spring Outer Diameter - 6.65 ± 0.05mm
Spring Length - 18.0 ± 0.5mm
Initial Force - 35 ± 5gf
Bottom-Out Force - 45 ± 5gf
Initial Magnetic Flux - 130 ± 15Gs (1.2mm PCB) / 115 ± 15Gs (1.6mm PCB)
Bottom-Out Magnetic Flux - 750 ± 15Gs (1.2mm PCB) / 635 ± 50Gs (1.6mm PCB)
Total Travel - 3.50 ± 0.10mm
Lifespan - 100 Million Keystrokes

Factory-lubed

15 included in a pack
