Mill-Max Hotswap Sockets
Mill-Max Hotswap Sockets
Mill-Max Hotswap Sockets
Mill-Max Hotswap Sockets
3305-0 Tin Mill Max Socket
3305-1 Tin Mill Max Socket

Mill-Max

Mill-Max Hotswap Sockets

Sale price$14.95
Material:7305-Gold
Quantity:

Mill-Max sockets are the easiest way to install and introduce hot swap to a standard PCB.



Available in 7305-Gold, 0305-Tin, 3305-0 Tin, 3305-1 Tin.



Features:

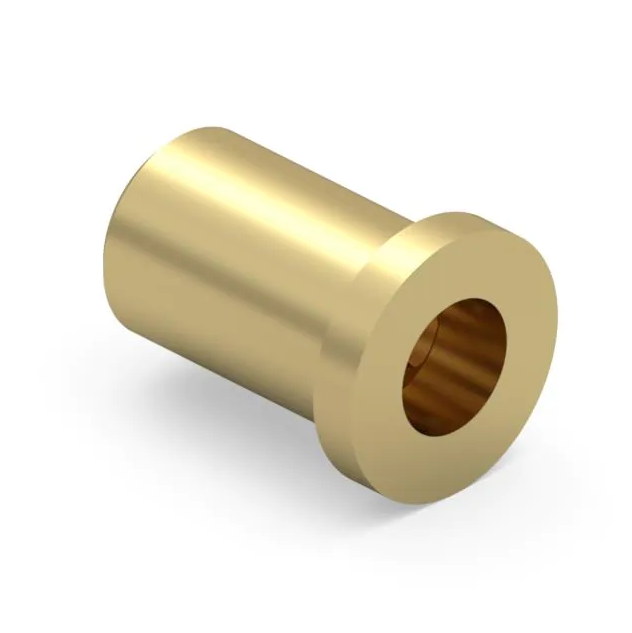

(7305-Gold) 7305-0-15-15-47-27-10-0

  • Gold Over Nickel
  • Length: 2.67mm
  • Outside Diameter: 1.96mm
  • Material: Beryllium Copper Alloy
  • Harder to handle, ideal compatibility with smaller builds

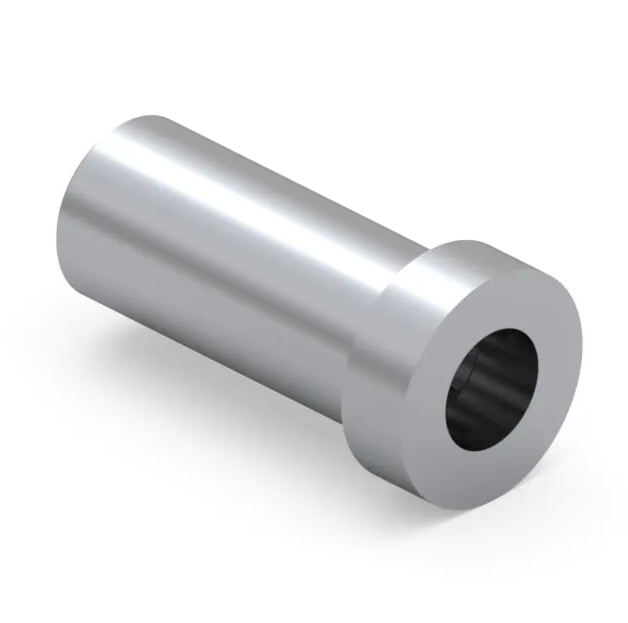

 (0305-Tin) 0305-2-15-80-47-80-10-0

  • Tin over Nickel
  • Length: 3.94mm
  • Outside Diameter: 1.93mm
  • Material: Beryllium Copper Alloy
  • Easier to handle, may have compatibility with smaller builds

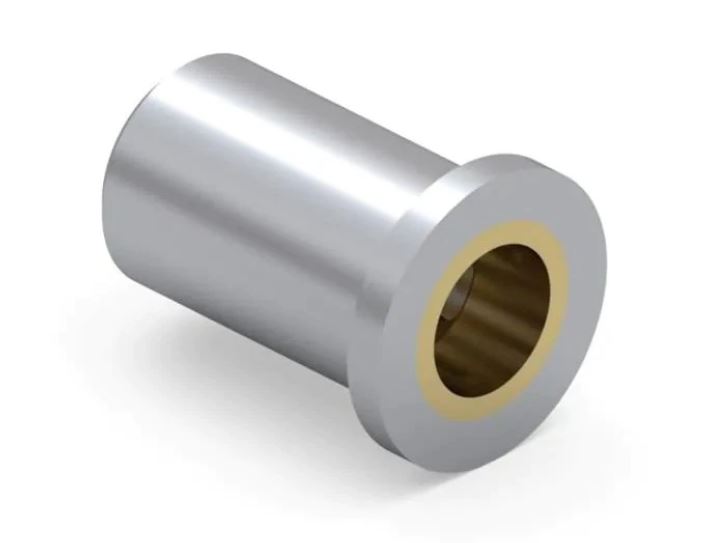

(3305-0 Tin) 3305-0-15-80-47-27-10-0

  • Tin Over Nickle
  • Length: 2.67mm
  • Outside Diameter: 1.47mm

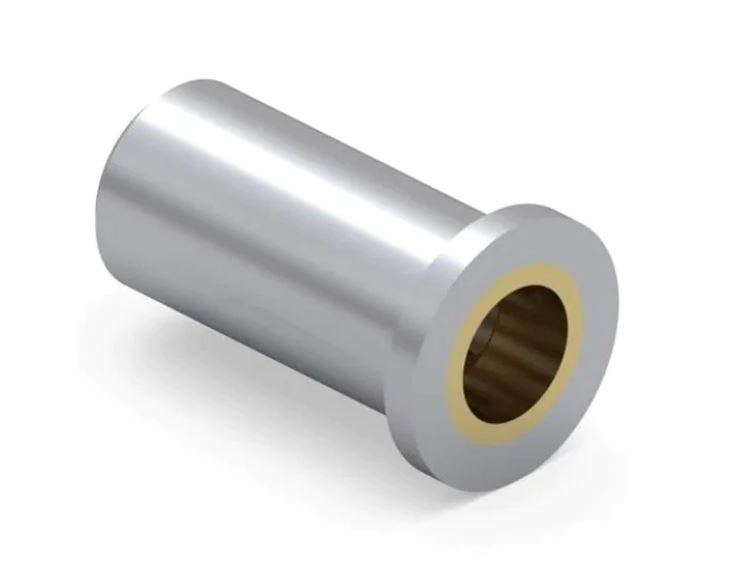

(3305-1 Tin) 3305-1-15-80-47-27-10-0

  • Tin over Nickel
  • Length: 3.30mm
  • Outside Diamete: 1.47mm



1 packet includes 50x MillMax PCB Sockets
